Creating your MUX Project

Welcome to this practical guide, where we’ll explore how to combine different logic blocks in the ChipInventor platform to create circuits with specific functionalities. First, we’ll build a MUX to demonstrate how gates like AND, OR, and NOT can be arranged to achieve a desired behavior. Then, you’ll be challenged to apply these concepts to design your own DEMUX .

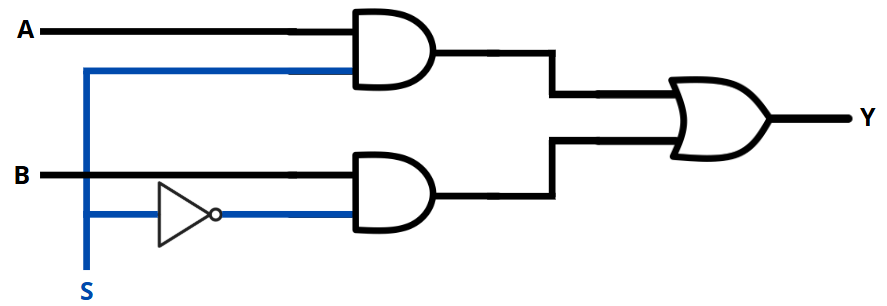

A multiplexer (MUX) is a digital circuit that selects one of several inputs and transmits it to the output, controlled by selection lines. Here's the visual example you'll learn how to build today:

So, in order to create your MUX Project, click New Project. Suggestion for the filling the project details:

• Name: MUX and DEMUX Circuits

• Description: Example of a multiplexer and demultiplex logics circuits

• Type: “OpenLane Sky360

Once done, proceed to the workspace to start designing your circuit.
