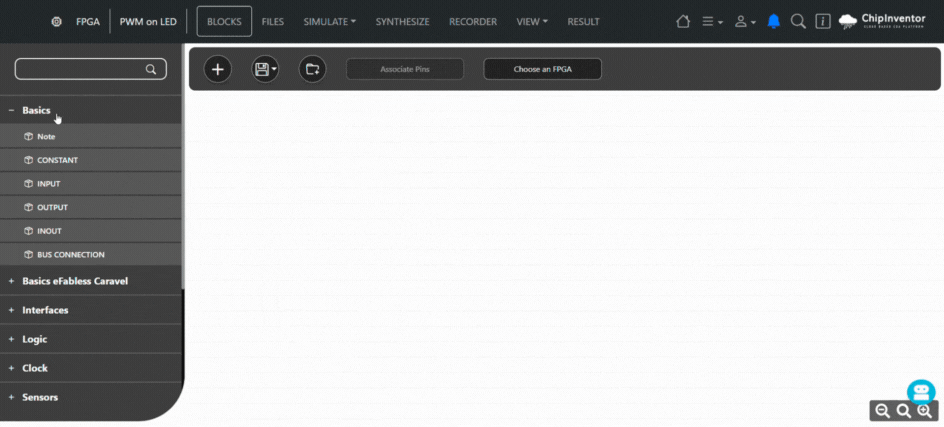

Understanding the Project and the Blocks Used

This project consists of the following blocks:

• clock_20_hz: Generates a slower 20 Hz clock from the main FPGA clock. It is used to generate low-frequency pulses.

• pulse_count_8_bits: A counter that increments with each 20 Hz clock pulse.

• pwm_control8: Generates a PWM signal based on the counter value, with proportional duty cycle.

• inverterC: Inverts the PWM signal, acting as final control for the output.

• Input/Output Pins:

• clk: System clock input.

• l1: Final output with inverted PWM signal (can be connected to an LED).
