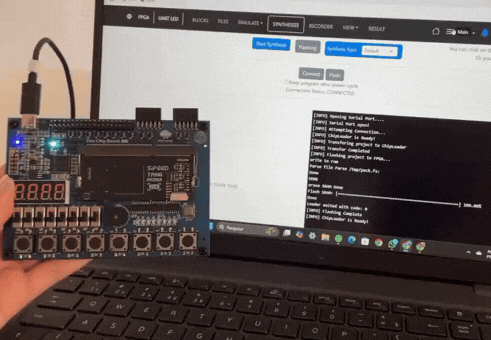

Hardware Validation

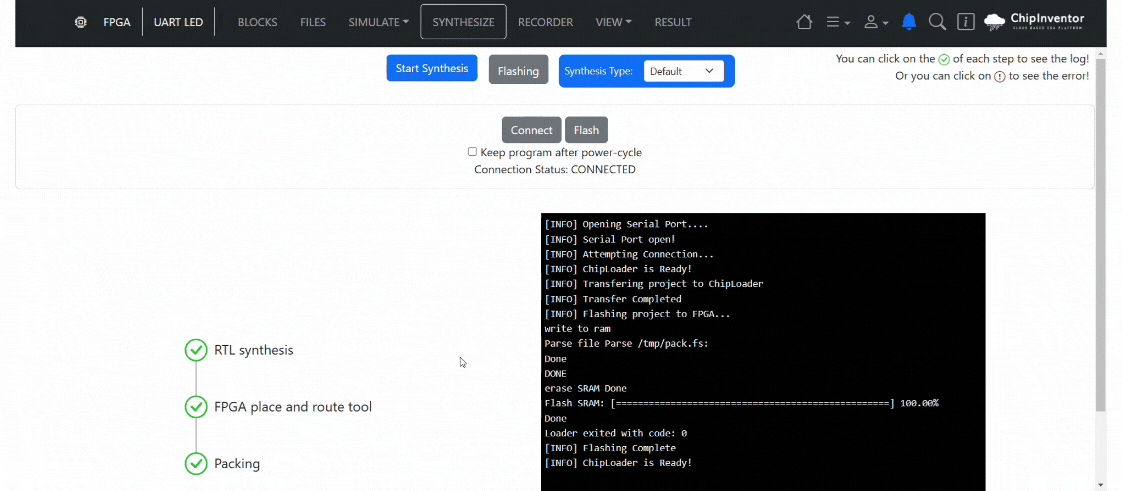

1. Access the Main tab.

2. Click on Serial Console.

3. Set the baud rate to 115200.

4. Send a character via the serial terminal.

• If the character matches the predefined value (8’h61), the LED should toggle.
• The same character will also be sent back through the TX pin (echo).
