Before programming the FPGA, it's essential to simulate the circuit to ensure the behavior is correct.

Simulation Steps:

  1. Access the Simulate tab in the top menu.

  2. Select Dynamic Simulation.

  3. What to Check During Simulation:

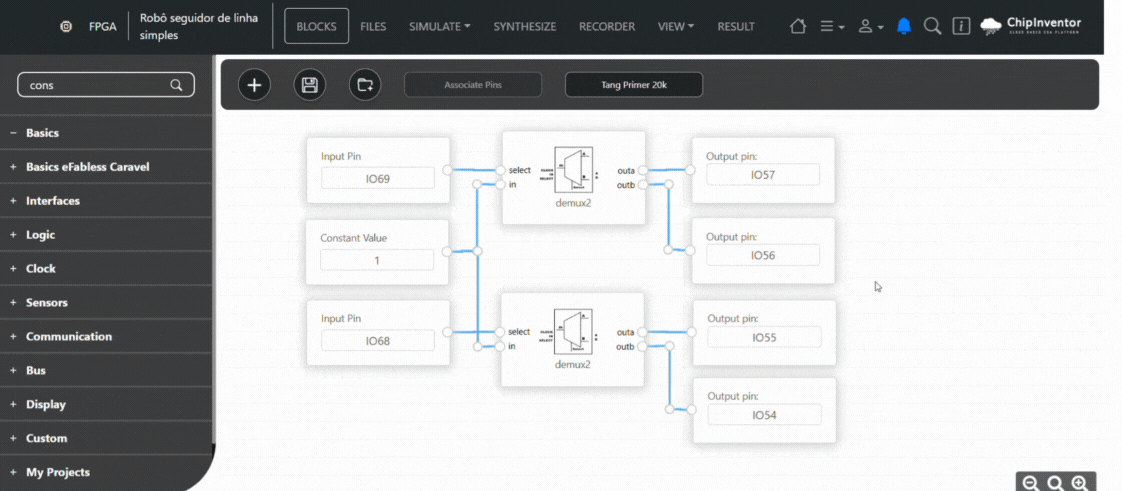

  • When IO69 or IO68 change state, the output of the corresponding demux2 switches between outa and outb.

  • The outputs reflect the expected behavior of the motors (or LEDs for testing).
