Synthesizing the Circuit

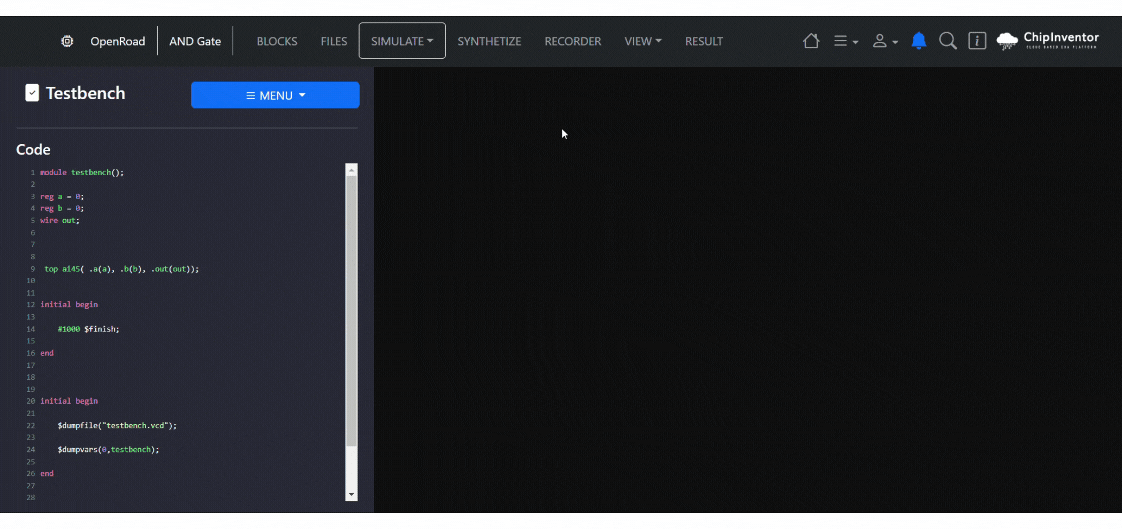

1. On the top navigation bar, click the Synthesize tab to transform your Verilog hardware description into a physical layout in GDSII format.

2. The synthesizer integrates various tools to perform the main chip design tasks, including:

• • RTL Synthesis

  • Equivalence Checking

  • Floorplanning

  • Placement

  • Routing

  • Timing Analysis

  • Signoff Checks

  • GDSII Generation

  • Creates a 3d view of your project


Note: The synthesis may take a time. Be patient and wait to finish.

3.  When the synthesis finishes, you can view the synthesis log by clicking on the “Green Tick”.
