Viewing the Project in 3D

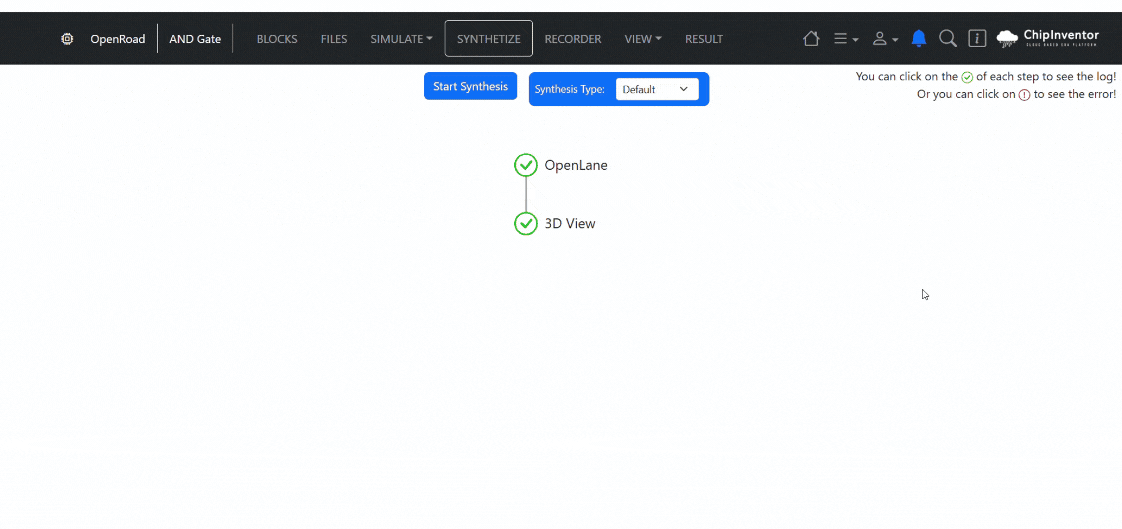

1. On the top navigation bar, navigate to the View tab and select Interactive 3D Layout.

2. Use the controls to explore the layout:

• Rotate: Click and drag with the left mouse button.
• Zoom: Use the mouse scroll wheel.
• Pan: Press Ctrl + left mouse button or right mouse button to reposition the layout.

3. Filter Layout Elements
The layout includes several visualization options to help focus on specific elements:

• Toggle Filler Cells: Hide non-functional elements like filler cells.
• Toggle TopCellGeometry: Remove power and ground buses from the view.
• Toggle Instance Labels: Show or hide labels for individual components.
• Toggle Net Connections: Highlight the connections between components.

These options allow for a cleaner and more focused view of the circuit, depending on what you wish to analyze.

4. Isolating Specific Cells
To focus on a particular component, use this feature to analyze specific parts of the circuit in detail:

• Hover the mouse over the desired cell, and then:
• The first option is to click on it to isolate the component, filtering out unrelated elements, in the right bar, using the filter layout elements.
• The second option is to click on the buttons 1, 2 and 3 on your keyboard, with the mouse over the desired cell. Click 3 again to visualize the whole chip again.
