Exploring the Files Page

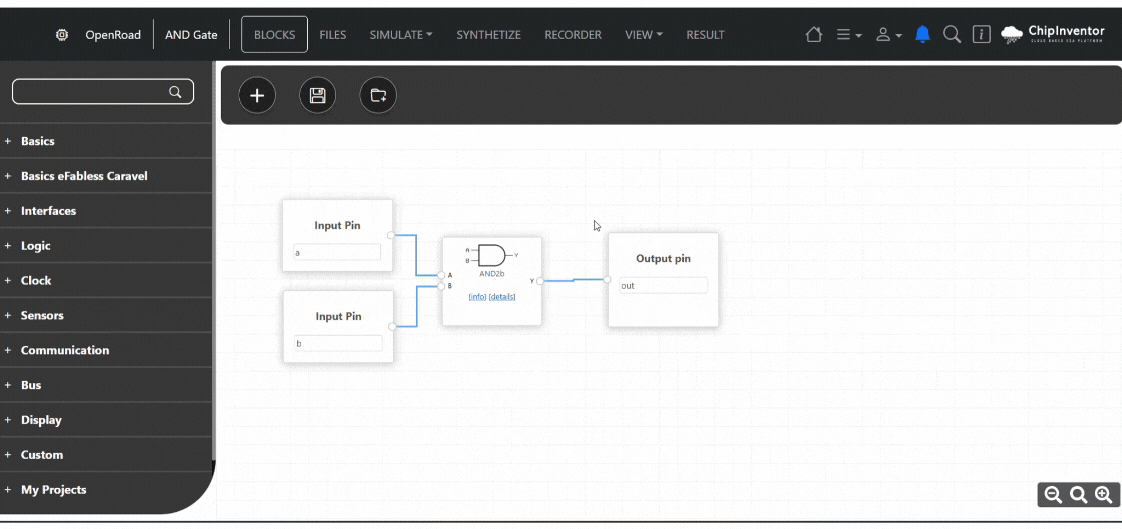

1. Now, it’s time to automatically generate the Verilog code for your project. On the top navigation bar, click Files. Similar to the Save function, a pop-up will appear to confirm this operation.

In addition to the Verilog code, the system creates all the files necessary to synthesize your project.

2. In the Explore section on the left, browse your project files:

• Right-click on files to open options.

• Double-click on the main file to open it in the editor.

3. Review the Verilog code generated from the Blocks tab diagram.

• This code translates the blocks into hardware description language.

• For beginners, it’s recommended not to modify the code directly.
